A Step by Step Guide on How to Migrate from AWS to Azure

Step #1. Asses Your AWS Environment

Assess your AWS environment. This will help you build a detailed roadmap for your journey. Catalog every EC2 instance, database, storage volume, and network configuration. The best approach is to identify and document every resource in your AWS environment.  Though this list is not exhausting, let’s take a look at what you can include.

• Virtual Machines (VMs): List instance types, AMI IDs, associated VPCs, subnets, and security groups.

• Storage Solutions: Include details about S3 buckets, EBS volumes, and Glacier archives—covering storage classes, replication settings, and lifecycle rules.

• Networking Components: Map out VPCs, subnets, route tables, gateways, and VPN connections, ensuring every IP and ACL rule is accounted for.

• Databases and Services: Capture RDS, DynamoDB, Redshift specs, as well as other services like Lambda functions and API Gateways.

• Dependency Mapping: Identify workflows and how different services interact, such as EC2 instances triggering Lambda functions or VMs accessing databases.

AWS provides tools like AWS CloudWatch to collect metrics on CPU, memory, network traffic, and storage patterns.

Step #2. Map AWS Services to Azure for a Smooth Migration

Assess the compatibility of your existing workloads with Azure services. For example, EC2 instances can typically be migrated to Azure Virtual Machines, while AWS S3 can be transitioned to Azure Blob Storage.

In some cases, minor adjustments may be needed to optimize your workloads for Azure’s environment. Mapping helps you understand what goes where and what modifications might be needed to make everything fit perfectly in your new environment.

Microsoft does provide various resources and guides to help with the migration from AWS to Azure, including cheat sheets and mapping tools. These resources can help you understand the equivalent services and features in Azure that correspond to those in AWS. You can find a detailed comparison between AWS and Azure services.

Step #3. Setup Azure Environment

You will need to set up Azure environment. Go to the Azure Sign Up Page. If you don’t have a Microsoft account, you’ll need to create one (this can be a personal or work email). Here, you have to setup necessary accounts, define service limits, billing, and access control. Choose the right subscription type and then configure Microsoft Entra ID (formerly Azure Active Directory) to assign roles and permissions to team members.

Step #4. Network Configuration and Connectivity Setup

Once it is done, you will have to configure virtual networks and subnets. This is where you establish the foundational infrastructure in Azure to support your workloads. Within each VNet, define subnets that align with the structure in AWS. Ensure subnet sizes and IP address ranges are appropriate for your Azure environment, mimicking the previous architecture. Azure uses NSGs to control inbound and outbound traffic to resources in your subnets. Create and configure NSGs to mirror the security policies implemented in AWS, ensuring the same level of protection and access control.

Just like in AWS, you'll need to configure routing tables for each subnet. Set up the appropriate route rules to ensure traffic flows correctly between subnets and services, reflecting your AWS routing configuration.

Step #5 Prepare the Environment for the Migration

For a hybrid cloud setup, you have to ensure the connections between your on-premises network and the cloud are just like they were before.

Azure offers options like VPN Gateway and Azure ExpressRoute, which will help you mirror your AWS Direct Connect or VPN setup.  Beyond that, you can set up VPC peering across regions for secure and smooth data transfer between your AWS and Azure environments.

Tips:

• Select the appropriate storage tiers

• Choose the proper disk types and sizes (e.g., Standard HDD, Standard SSD, and Premium SSD).

• Configure IOPS and Throughput

• Set Encryption Levels, Azure offers both server-side encryption (SSE) and customer-managed keys (CMK)

• For simple lift-and-shift migrations, use Azure Blob storage containers.

• If your workloads require shared storage, Azure Files is a nice pick

• Configure Access Controls using Azure Role-Based Access Control (RBAC)

Step #5. Choose a Migration Strategy

5.1 Rehost (Lift-and-Shift)

This is the simplest migration strategy: You move your workloads from AWS to Azure without making any major modifications to the applications or data. Simply put, you replicate your existing environment in Azure by mapping AWS services (e.g., EC2 to Azure Virtual Machines, S3 to Azure Blob Storage) to their Azure counterparts. Since you're not altering the architecture, you can migrate large workloads in no time.

5.2 Refactor (Re-platform)

Refactoring means restructuring your existing system to improve performance. In this context, here, you can make some adjustments  (optimizations) to your applications. For example, you might switch from self-managed databases to Azure SQL Database or replace AWS Lambda with Azure Functions.

5.3 Rebuild (Re-architect)

When you redesign your applications from the ground up to make the most of Azure’s capabilities. For example, you might shift a monolithic application to Azure Kubernetes Service (AKS) for containerized workloads. Choose it when you need maximum flexibility and efficiency. It allows you to take full advantage of Azure’s ecosystem, including advanced analytics, AI/ML services, and scalability. You may hire a cloud consulting agency to build a tailored cloud architecture.

Tools for Data Migration Strategies

• Database Migration Service (DMS) can help automate much of the database migration process.

• Azcopy for file transfers

• Azure Event Hubs or Azure Synapse Analytics for migrating and streaming data from AWS data lakes or Amazon Kinesis into Azure’s ecosystem.

Step #6. Testing and Validation: Ensuring a Smooth Transition

Testing is important to guarantee that the system is functional and performs well in the new environment. Here's how you can do it.  Use Azure DevTest Labs to create a dedicated test environment mirroring your production setup.

It’s important to test and optimize it before going live. So, first, you can create a test environment in Azure that’s just like your production setup using Azure DevTest Labs.

If you don’t want to recreate everything every time, use Azure Resource Manager templates and PowerShell to automate builds. Once your test environment is ready, you can use Azure Traffic Manager to simulate real-world traffic and see how your app performs during heavy usage. You can further utilize tools like Azure Monitor and Application Insights to track how your app is doing.

Step #7. Executing the Migration

Once testing confirms everything is ready, plan for downtime to avoid upsets. Schedule the migration when traffic is low. Alternatively, you can direct users to the right location by using Traffic Manager geo-routing. Also, have a fallback plan in place. So, if anything goes wrong, you can ensure your business keep running.

During this, you will need to ensure continuous data synchronization. For this, You can use Azure Site Recovery for real-time replication of virtual machines and the Azure Database Migration Service (DMS) to move databases seamlessly.

Set up Azure DNS and Route 53 ahead of time to smoothly switch everything over when the time comes.

Lastly, keep a close eye on everything during the migration. Use Azure Monitor to track the health of your systems and applications in real-time. If any issues arise, use Log Analytics and Recovery Services Vaults to quickly diagnose and fix problems. Once these steps are completed, your migration from AWS to Azure will be finished. Congratulations!

Post Migration Tips

• Update DNS Records

• Properly configure Security and Monitoring

• Adjust VM sizes, scale down idle SQL instances, and optimize storage tiers.

• Apply Azure Reservations and Savings Plans to reduce costs for long-running workloads.

• Use Cost Management + Billing to monitor usage and enforce budget limits.

• Some AWS services may not have direct Azure equivalents. Resolve these by modifying application code and configurations.

• Replace hardcoded dependencies like S3 URLs or RDS connection strings with Azure-native alternatives.

• Provide initial support by engaging experienced Azure engineers to troubleshoot and optimize your setup.

• Conduct training sessions to upskill your team on Azure tools and best practices.

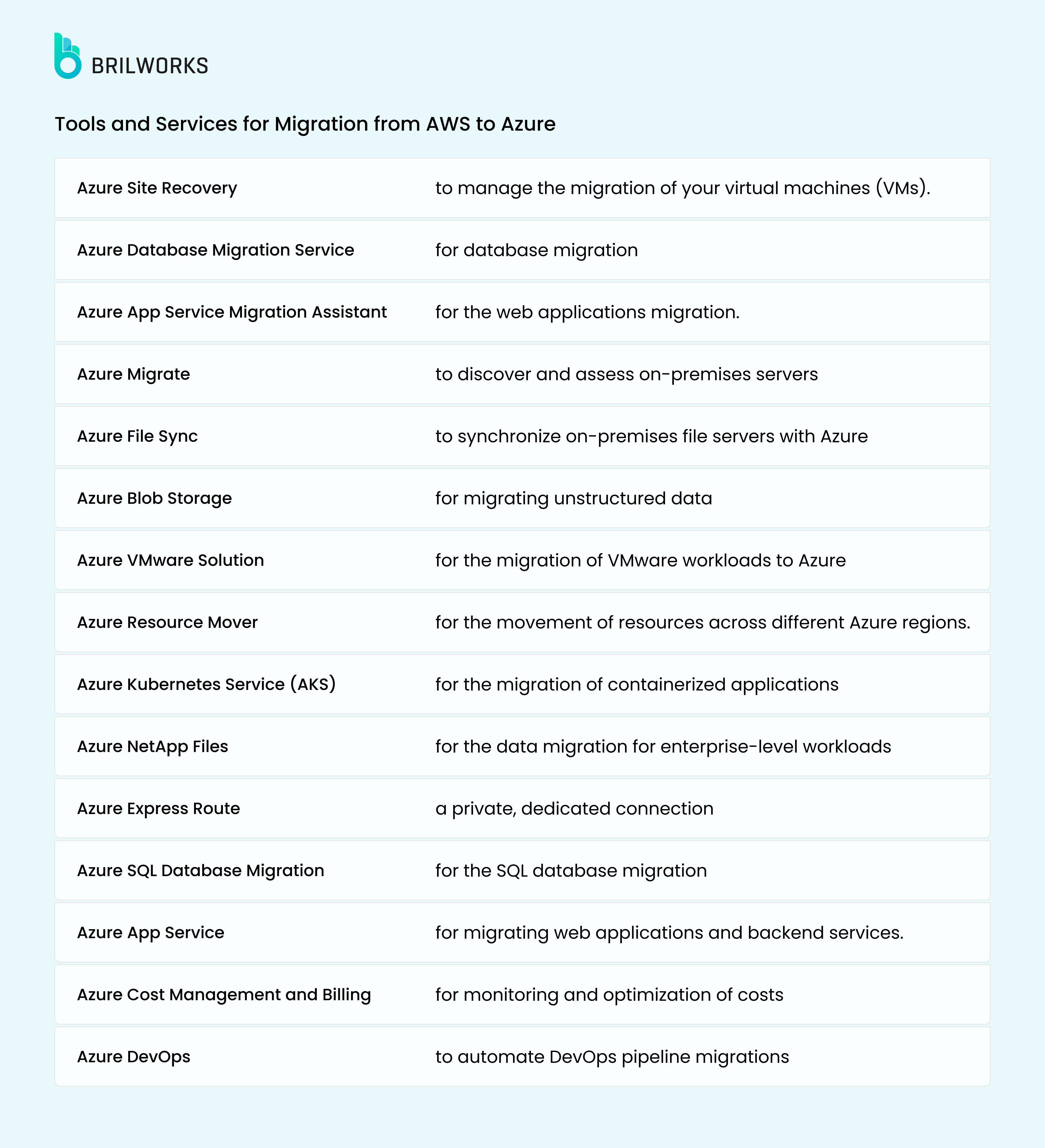

Tools and Services for Migration from AWS to Azure

Azure’s got a full toolkit for migration, and Azure Migrate is where it all starts. It’s like hiring a moving company that’s got the right gear for every part of your move.

Tips for Migration from AWS to Azure

The Migration Process: One Step at a Time

Start with your databases first—those are usually the trickiest and most important. Use Azure Database Migration Service to set up replication, making sure your data gets moved safely. It’s like moving your most valuable stuff first, making sure it arrives safely before anything else.

Next, focus on the applications. Start with non-production workloads to test things out and work out any kinks. Use Azure Site Recovery to replicate your VMs and keep an eye on things. Think of it like moving room by room—making sure everything works in the new place before bringing in more.

Network Configuration: Connecting Everything

Setting up your network in Azure is like getting your utilities set up in your new house. You’ll configure subnets, set up security groups, get your load balancers going, and double-check your DNS settings. This step’s super important to make sure everything stays connected and secure in your new environment.

Testing and Optimization: Making Sure Everything Works

Once your apps and data are in Azure, you’ve got to test everything. That means checking functionality, performance, and security, and getting user feedback. It’s like testing out all the appliances in your new house to make sure they work just right.

Then, focus on optimization. Monitor performance, set up auto-scaling where needed, and tighten up security. It’s also the perfect time to keep an eye on costs and make sure you’re using the right-sized resources for your workloads.

The Final Steps: Cutover and Beyond

The cutover is your big moving day. Make sure you’ve got a plan, schedule a maintenance window, and have rollback procedures in place just in case. After the move, monitor everything closely, verify that all systems are working, and make sure your team knows how to handle the new setup.

Conclusion: Embracing Your New Cloud Home

Moving from AWS to Azure can feel like a big deal, but with the right planning and execution, you’ll find it can actually go pretty smoothly. Just remember to:

• Take it one step at a time

• Test everything at each stage

• Keep security in check

• Monitor and optimize all the way through

• Document everything for future reference

Migrating from AWS to Azure is a big task, but with the right planning, testing, and communication, it’s totally doable. Just follow this guide, adapt it to your needs, and you’ll be on your way to a smooth cloud migration. The cloud’s always changing, so stay informed and reach out for cloud expert help when needed. Your successful Azure migration is just around the corner.
